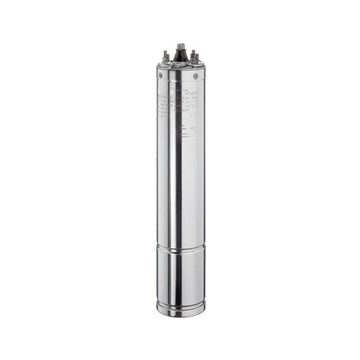

MOTOR SUB STAIRS 1.12KW 400V 100MM
100 Mm Rewindable Submersible Motor For Standard Applications With Maintenance Free Lubricated Bearings And Approved Non-Toxic Vegetable Oil. Dimensions And Flange According To Nema4-Standards. Matching Stairs Control Boxes Must Be Installed Or A Usb Control Box.Extended Description:100 Mm Rewindable Submersible Motor For Standard Applications With Maintenance Free Lubricated Bearings And...
Click & Collect Stock Availability
loading..
loading..
![](https://cdn.shopify.com/s/files/1/0798/8405/8926/files/payment_Gateways_329f0bd3-d453-4e36-bfca-00e3af85d65a_2048x2048.jpg?v=1698662431)
100 Mm Rewindable Submersible Motor For Standard Applications With Maintenance Free Lubricated Bearings And Approved Non-Toxic Vegetable Oil. Dimensions And Flange According To Nema4-Standards. Matching Stairs Control Boxes Must Be Installed Or A Usb Control Box.
Extended Description:
100 Mm Rewindable Submersible Motor For Standard Applications With Maintenance Free Lubricated Bearings And Approved Non-Toxic Vegetable Oil. Dimensions And Flange According To Nema4-Standards. Matching Stairs Control Boxes Must Be Installed Or A Usb Control Box. Maximum Water Temperature Of 35°C And Immersion Depth Of 200 M. Motor Can Be Installed In A Horizontal Or Vertical Position. Motor Fitted With A Removable Lead-Out Cable. 0.37 Kw To 4 Kw. General Specifications: Mounting Flange: 4 Nema Standard; Insulation Class F; Protection Ip68; Single-Phase Motors: 0.37 Kw Up To 4.0 Kw. Three-Phase Motors: 0.37 Kw Up To 7.5 Kw; Standard Voltages: 1 ~ 230 V (50 Hz); 3 ~ 230 V Or 400 V (50 Hz). Cable Length: 1.7 M - 0.37 Kw Up To 1.5 Kw; 2.5 M - 2.2 Kw Up To 7.5 Kw. Materials: Motor Shell - 304 Stainless Steel; Mechanical Seal - Ceramic/Carbon; Shaft (0.5 - 3 Hp) - 304 Stainless Steel; Shaft (4 -10 Hp) - 630 Stainless Steel.
Extended Description:
100 Mm Rewindable Submersible Motor For Standard Applications With Maintenance Free Lubricated Bearings And Approved Non-Toxic Vegetable Oil. Dimensions And Flange According To Nema4-Standards. Matching Stairs Control Boxes Must Be Installed Or A Usb Control Box. Maximum Water Temperature Of 35°C And Immersion Depth Of 200 M. Motor Can Be Installed In A Horizontal Or Vertical Position. Motor Fitted With A Removable Lead-Out Cable. 0.37 Kw To 4 Kw. General Specifications: Mounting Flange: 4 Nema Standard; Insulation Class F; Protection Ip68; Single-Phase Motors: 0.37 Kw Up To 4.0 Kw. Three-Phase Motors: 0.37 Kw Up To 7.5 Kw; Standard Voltages: 1 ~ 230 V (50 Hz); 3 ~ 230 V Or 400 V (50 Hz). Cable Length: 1.7 M - 0.37 Kw Up To 1.5 Kw; 2.5 M - 2.2 Kw Up To 7.5 Kw. Materials: Motor Shell - 304 Stainless Steel; Mechanical Seal - Ceramic/Carbon; Shaft (0.5 - 3 Hp) - 304 Stainless Steel; Shaft (4 -10 Hp) - 630 Stainless Steel.
Type: | |
---|---|
SKU: |
11058905 |
Weight: |
9.44 kg |
